1,Air pressure switch type:Mechanical pressure switch

2,Working medium:Compressed air non-lubricated or sustained lubricated

3,Housing material:Engineering Plastic

4,Base material:Aluminum alloy hard anodized

5,Adjusting knob material:Engineering Plastic

6,Regulating model:downward press lock type

7,Seal material:NBR

8,Pressure range 0.5~10Bar

9,Pressure Endurance:15Bar

10,Working Temperature:0~50℃

11,Thread connecting size:PT1/8” Male

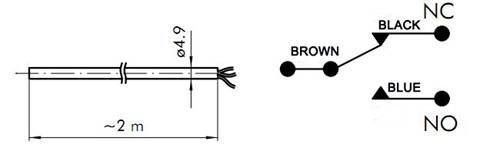

12,Electricity connect model:Out lead 2 meters cable

13,Maximum current:2A

14,Maximum voltage:250V

15,Contact type:Normally open or normally closed

16,Protecting class:IP65

17,Switch type:Micro-switch SPDT

18,Mounting:direct install or base holes 2XM3 wall mounting

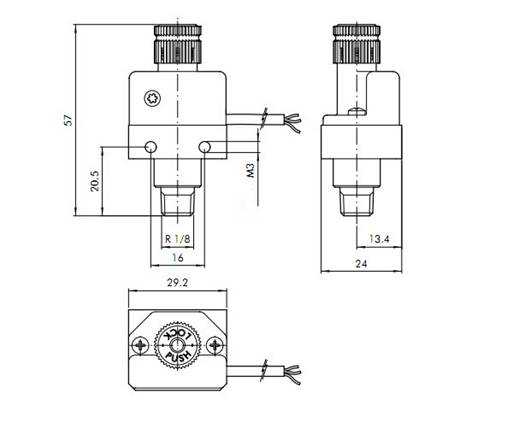

Dimension
